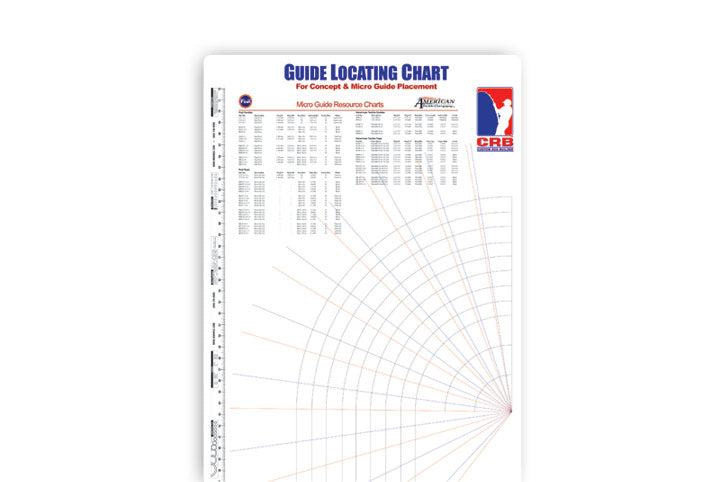

Guide Locating Chart for Concept & Micro Guides

This guide has been designed to aid you in proper placement of Micro and Concept® guides. It utilizes angle to the tangent of the blank curve to achieve this. _x000D_ _x000D_ Unlike other guide placement tools this will take into consideration the action of your blank to properly place guides in the range that your blank flexes the most and requires more support. _x000D_ _x000D_ While this tool was designed for placement of Micros and Concept-style guides it distributes the guides on virtually any blank to achieve higher performance and greater protection. _x000D_ _x000D_ _x000D_ Features_x000D_ _x000D_ _x000D_ Spacing for Micro and Concept® style guides: _x000D_ Blue lines are used for placement of Micro guides _x000D_ Red lines are used for placement of Concept® guides _x000D_ Includes several handy rod building utilities, including: Micro guide resource charts for Fuji & American Tackle 72" ruler linear conversion chart 1/64" to decimal inch to mm conversion chart weight conversion chart Tip-Top sizing charts Guide-ring sizing charts Volume conversion chart Common mathematical conversion formulas Temperature conversions and more! Usage instructions with color photographs included Included drawstring to pull the blank's tip towards the butt until the tip of the blank is at a 90 degree angle to the butt _x000D_
